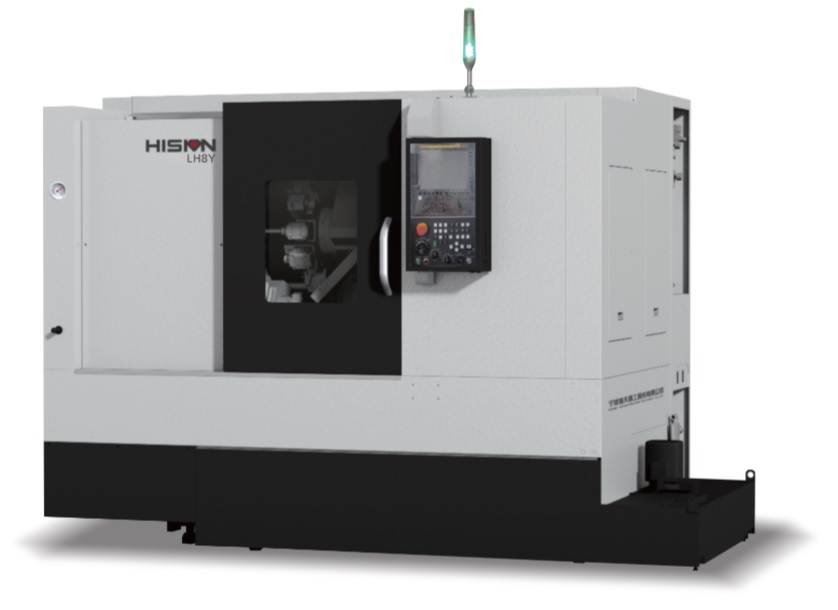

LH8Y-L Turn Mill with Y axis

Swing over bed φ650mm, Swing over carriage φ440mm, Max. turning φ350mm, Y axis travel ±55
Swing over bedφ550mm
Swing over saddleφ440mm
Max. turning dia.φ350mm
Max. turning length1060mm
Y travel±55mm
Turret typeBMT55
Turret capacity12
OD tool size25x25mm
Max. boring bar sizeφ40mm
Drive typeBuilt-in-spindle
Max. spindle speed4500rpm
Spindle motor power11/15kw
Spindle noseJIS A2-6
Spindle through holeφ76mm
Chuck size8 inch
Motor power of milling spindle3.7/5.5kw
Max. milling speed4000rpm
Quill dia.φ100mm
Quill bore taperMT5
Quill travel120mm
Tailstock travel900mm

LH8Y is a CNC turning center equipped with a Y-axis and power turret,designed with the core principles of high efficiency, precision, and reliability.

The machine integrates high-accuracy and rigid ball screws, a high-stiffness motorized spindle, and a servo-driven turret. Its design emphasizes environmental protection, energy efficiency, and ergonomic operation, making it widely suited for machining complex components across industries.
