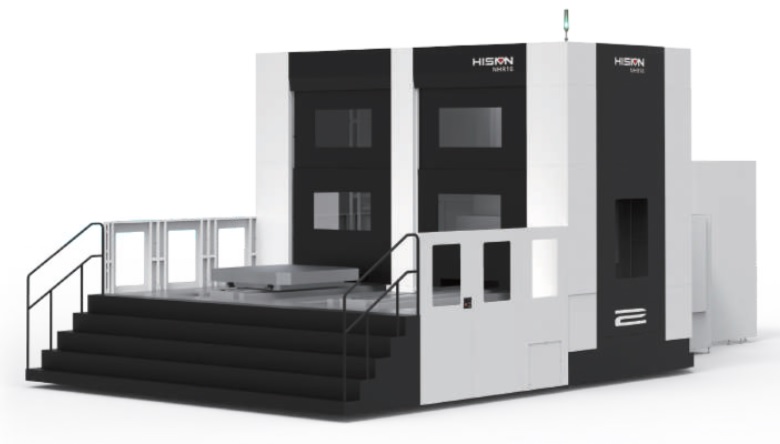

NHRD series ( Single pallet) This model adopts an advanced T-shaped bed structure, gantry style columns, and upright box layout, with strong rigidity and high precision retention, suitable for the processing of precision box components.
The patented CNC turntable adopts special YRT turntable bearings, with three rows of rollers for axial and radial support. The clamping torque of the table is large, and the anti overturning torque is strong.
The spindle box adopts two-stage gear speed change to ensure high torque output at low speed. The spindle bearing adopts the combination of angular contact bearing and double row cylindrical roller bearing to meet the requirements of heavy cutting
After quenching and grinding, the Y-axis guide rail structure has large section size and good rigidity. The symmetry of thermal deformation in all directions is ensured through seven contact surfaces.
It has a W axis function (Optional) with a stroke of 535mm and a diameter of 130mm, guided by a high-precision linear guide rail, and driven directly by a ball screw and a servo motor.
HISION Arm type tool magazine, arm imported from Japan, with stable and reliable performance.
The product is widely used in fields such as automobiles, rail transit, civil aviation, valves, mining machinery, textile machinery, plastic machinery, ships, and electricity.
