CNC Vertical Lathe - Ram type

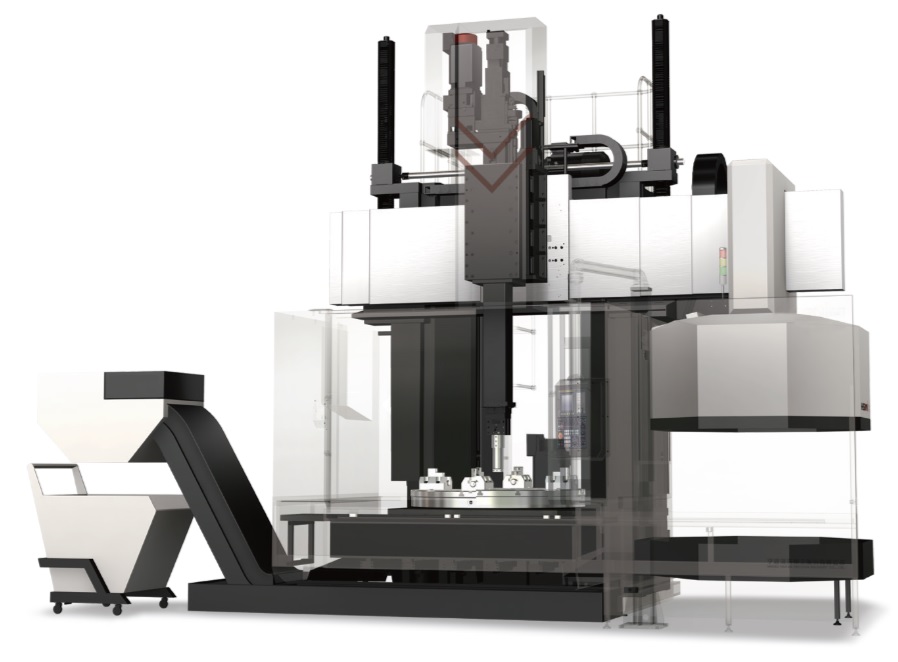

LV100 CNC Vertical Lathe - Fixed beam

Ram type fixed beam CNC Vertical Lathe
Table dia.Φ1000mm
Max. rotating dia.Φ1250mm
Max. turning dia.Φ1250mm
Max. turning height800mm
Cross beam travelFixed beam
Table rotation speed600rpm
Spindle motor power37/44.4kw
Drive typeGear box
Tool magazine capacity12T

LV series known for its high rigidity, high speed, high precision and high cutting force in the European and American markets, under the premise of meeting the turning function.

The C-axis and the second spindle with excellent dynamic characteristics can achieve continuous composite cutting and high-precision indexing processing, supplemented by a variety of functional accessories, including grinding functions, to provide users with excellent solutions for complex shape parts.
