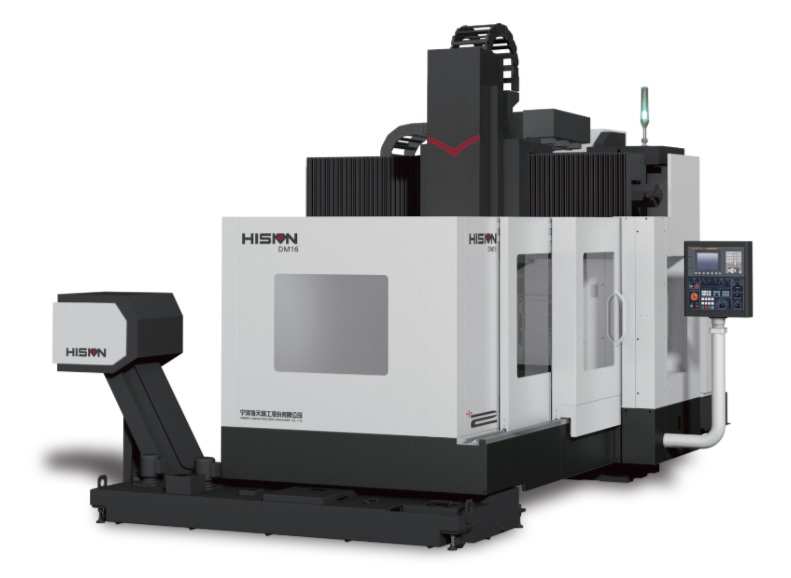

DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,
The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.
The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigid
Self developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power
24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.
Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring and
other functions, and improve the reliability. .
Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
