Featured The new generation of VM series continues to utilize high-strength cast iron material and adopts a large-span bed base and columns, providing a solid foundation and stable performance for the machining capabilities. Equipped with a mature spindle system and feed system, it ensures excellent stability and reliability.Standard Roller Guide Rail: All three axes are equipped with high-rigidity, heavy-duty roller guide rails. The X/Z-axis is equipped with six guide blocks to enhance cutting vibration resistanceBuilt-in Spindle: 15000rpm, 11/18.5Kw built-in spindle as standard. Configure spindle oil chiller to reduce thermal deformation.High Precision and Small Lead Screw: Optional hollow screw, providing high thermal control accuracy.This series is widely used for processing small to medium-sized molds.

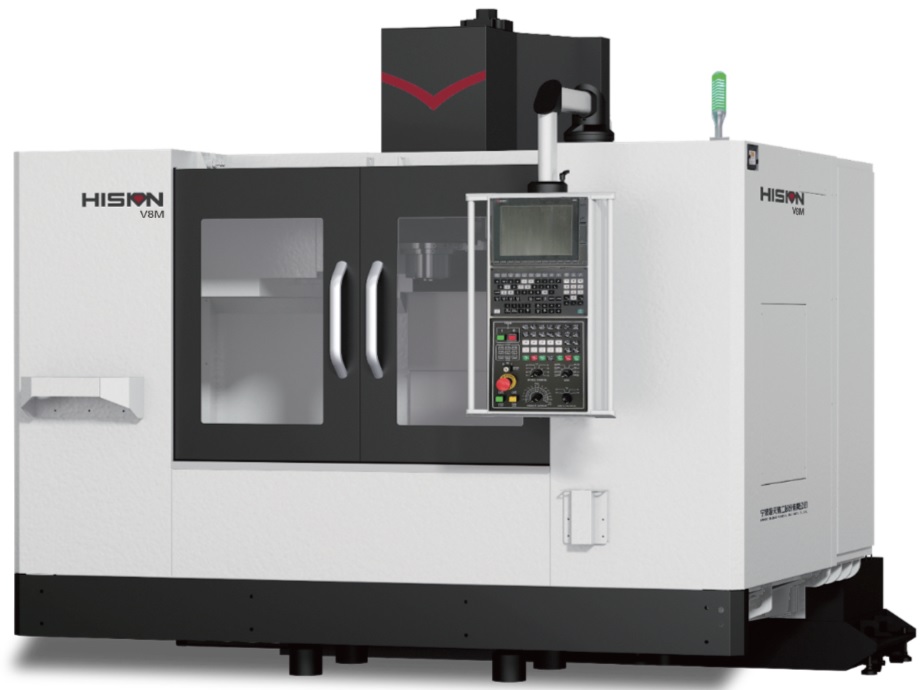

The new generation of VM series continues to utilize high-strength cast iron material and adopts a large-span bed base and columns, providing a solid foundation and stable performance for the machining capabilities. Equipped with a mature spindle system and feed system, it ensures excellent stability and reliability.Standard Roller Guide Rail: All three axes are equipped with high-rigidity, heavy-duty roller guide rails. The X/Z-axis is equipped with six guide blocks to enhance cutting vibration resistanceBuilt-in Spindle: 15000rpm, 11/18.5Kw built-in spindle as standard. Configure spindle oil chiller to reduce thermal deformation.High Precision and Small Lead Screw: Optional hollow screw, providing high thermal control accuracy.This series is widely used for processing small to medium-sized molds.
DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigidSelf developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring andother functions, and improve the reliability. .Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigidSelf developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring andother functions, and improve the reliability. .Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigidSelf developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring andother functions, and improve the reliability. .Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigidSelf developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring andother functions, and improve the reliability. .Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigidSelf developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring andother functions, and improve the reliability. .Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigidSelf developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring andother functions, and improve the reliability. .Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
DM series is designed with Haitian Precision patented technology, which enables to have high modal frequency characteristics, high dynamic characteristics, excellent temperature adaptability, excellent processing navigation functions, excellent ergonomics, etc.,The beam column integrated gantry frame has a stable base. The cross beam section adopts stepped structure, large section and large span.The distance from the spindle center to the Z axis guide rail surface is short, the turning moment is small, and the structure is rigidSelf developed high performance Built-in-spindle (motorized spindle), which can be configured with 12000 rpm and 15000 rpm built-in spindle. Built-in motor direct drive, no other vibration source. Low speed, high torque. High speed, constant power24T tool magazine (Optional), stable operation, fast tool change, equipped with tool magazine protection to prevent iron chips from entering the non processing area.Tool Setter (Option) equipped with automatic tool measurement system, it can realize tool length, radius measurement, tool breakage, wear, damage monitoring andother functions, and improve the reliability. .Tool External Oil Mist Cooling (Option) Effectively protect the tool and extend its service life. High mold precision and surface finish can be obtained.
DM series is integrated with the concept of high dynamic performance processing, so that it has the characteristics of high speed and high precision required for processing complex surfaces..The integrated structure foundation of bed and workbench is made of high-strength high-quality cast iron with strong rigidity and good shock absorption.Constant inertia design concept ensures that the machine tool has excellent static and dynamic characteristics and thermal stability.The ram and saddle are made of ductile iron with strong overturning resistance and stable structure, ensure the whole machine has high frequency & avoid cutting vibration.The machine tool is fully protected around.Compact structure.The electrical system, hydraulic, pneumatic and lubrication systems are under centralized control, which is convenient for daily maintenance and operation. It is widely used in large-scale mold surface processing, multi angle deep cavity slot type mold processing, large and medium-sized automobile panel gauge processing etc.
DM series is integrated with the concept of high dynamic performance processing, so that it has the characteristics of high speed and high precision required for processing complex surfaces..The integrated structure foundation of bed and workbench is made of high-strength high-quality cast iron with strong rigidity and good shock absorption.Constant inertia design concept ensures that the machine tool has excellent static and dynamic characteristics and thermal stability.The ram and saddle are made of ductile iron with strong overturning resistance and stable structure, ensure the whole machine has high frequency & avoid cutting vibration.The machine tool is fully protected around.Compact structure.The electrical system, hydraulic, pneumatic and lubrication systems are under centralized control, which is convenient for daily maintenance and operation.It is widely used in large-scale mold surface processing, multi angle deep cavity slot type mold processing, large and medium-sized automobile panel gauge processing etc.
DM series is integrated with the concept of high dynamic performance processing, so that it has the characteristics of high speed and high precision required for processing complex surfaces..The integrated structure foundation of bed and workbench is made of high-strength high-quality cast iron with strong rigidity and good shock absorption.Constant inertia design concept ensures that the machine tool has excellent static and dynamic characteristics and thermal stability.The ram and saddle are made of ductile iron with strong overturning resistance and stable structure, ensure the whole machine has high frequency & avoid cutting vibration.The machine tool is fully protected around.Compact structure.The electrical system, hydraulic, pneumatic and lubrication systems are under centralized control, which is convenient for daily maintenance and operation.It is widely used in large-scale mold surface processing, multi angle deep cavity slot type mold processing, large and medium-sized automobile panel gauge processing etc.
DM series is integrated with the concept of high dynamic performance processing, so that it has the characteristics of high speed and high precision required for processing complex surfaces..The integrated structure foundation of bed and workbench is made of high-strength high-quality cast iron with strong rigidity and good shock absorption.Constant inertia design concept ensures that the machine tool has excellent static and dynamic characteristics and thermal stability.The ram and saddle are made of ductile iron with strong overturning resistance and stable structure, ensure the whole machine has high frequency & avoid cutting vibration.The machine tool is fully protected around.Compact structure.The electrical system, hydraulic, pneumatic and lubrication systems are under centralized control, which is convenient for daily maintenance and operation.It is widely used in large-scale mold surface processing, multi angle deep cavity slot type mold processing, large and medium-sized automobile panel gauge processing etc.

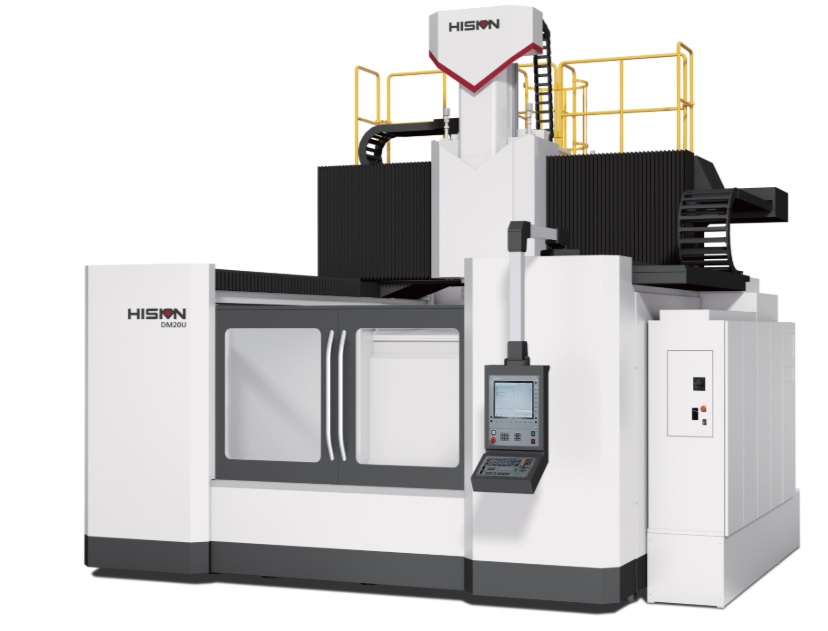

DM series is integrated with the concept of high dynamic performance processing, so that it has the characteristics of high speed and high precision required for processing complex surfaces..Viaduct Type Gantry Frame (DM20L25U) The integrated structure foundation of bed and worktable, workbench is made of high-strength high-quality cast iron with strong rigidity and good shock absorption.Constant inertia design concept ensures that the machine tool has excellent static and dynamic characteristics and thermal stability.The ram and saddle are made of ductile iron with strong overturning resistance and stable structure, ensure the whole machine has high frequency & avoid cutting vibration.German KESSLER milling head HSK-A63 tool taper, with the advantages of high speed and wide constant power range, is the preferred spindle for high hardness die finishing. Realize the effect of surface finish by milling instead of grinding.It can be equipped with 20T tool magazine (DM20L25U) with stable action and fast tool change speed. It can also be equipped with tool magazine protection to prevent iron chips from entering the non processing area.The machine tool is fully protected around.Compact structure. The electrical system, hydraulic, pneumatic and lubrication systems are under centralized control, which is convenient for daily maintenance and operation.HEIDENHAIN TNC640 Controller system is adopted with three loop feedback cascade control.It is widely used in large-scale mold surface processing, multi angle deep cavity slot type mold processing, large and medium-sized automobile panel gauge processing etc.
DM series is integrated with the concept of high dynamic performance processing, so that it has the characteristics of high speed and high precision required for processing complex surfaces..The integrated structure foundation of bed and workbench is made of high-strength high-quality cast iron with strong rigidity and good shock absorption.Constant inertia design concept ensures that the machine tool has excellent static and dynamic characteristics and thermal stability.The ram and saddle are made of ductile iron with strong overturning resistance and stable structure, ensure the whole machine has high frequency & avoid cutting vibration.The machine tool is fully protected around.Compact structure. The electrical system, hydraulic, pneumatic and lubrication systems are under centralized control, which is convenient for daily maintenance and operation.It is widely used in large-scale mold surface processing, multi angle deep cavity slot type mold processing, large and medium-sized automobile panel gauge processing etc.

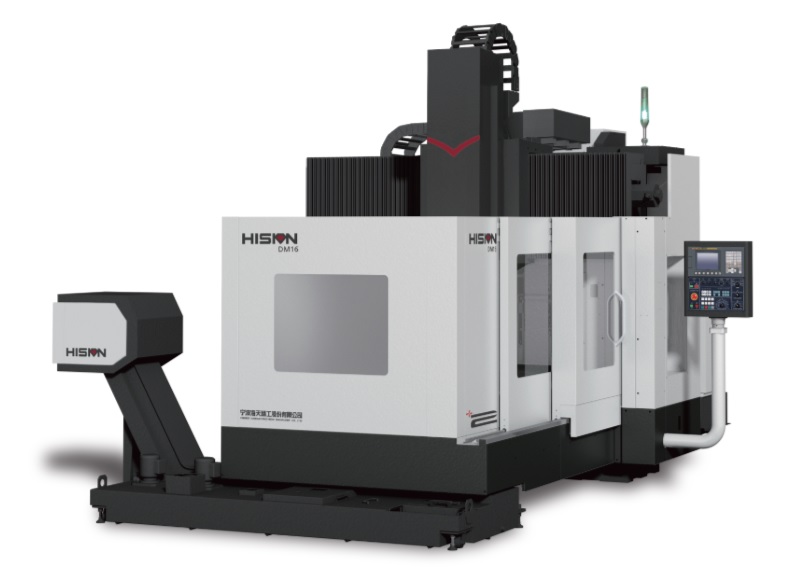

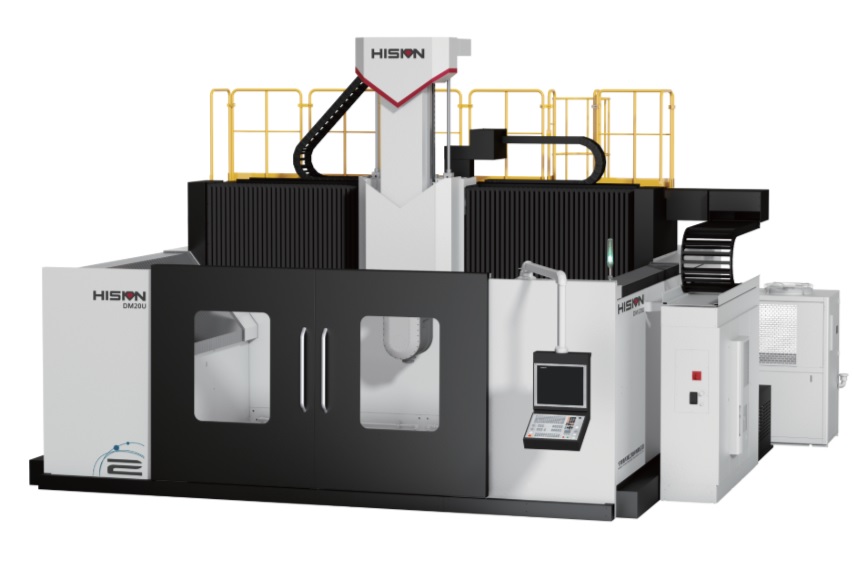

DM series Incorporating a high dynamic performance machining philosophy, this system achieves the high-speed and high-precision characteristics essential for processing complex surfaces.The machine features an elevated bridge-type double column structure with an isosceles T-shaped profile, delivering exceptional structural rigidity.Constant Inertia Design Philosophy ensures superior static/dynamic characteristics and thermal stability of the machine tool.The ram and crossbeam utilize welded steel construction, achieving high rigidity-to-weight ratio. This ensures elevated natural frequency of the entire machine, effectively suppressing machining-induced vibrations.Kessler Milling Head: The axis supports adopt four-point contact ball bearings, angular contact thrust roller bearings, and radial needle roller bearings, delivering exceptional load-bearing capacity and smooth operational stability.The axis rotary feeds are directly driven by dual torque motors, paired with a high-precision angular measurement system.The spindle is equipped with a coaxial encoder enabling synchronous rigid tapping.The spindle bearings utilize an oil-air lubrication system to ensure sustained highspeed machining capability and overload capacity.The Armored protective cover features stainless steel cladding with superior resistance to high-speed, high-temperature chip impacts, while the cover body demonstrates exceptional wear resistance. The cover is constructed from lightweight yet high-strength materials, achieving low-noise operation and smooth motion stability even under high-speed actuation.All motion axis are equipped with linear scale closed-loop detection systems, enabling high-dynamic feed performance. It is widely applied in: contour machining of large-scale molds, multi-angle deep-cavity slot & bore machining for intricate tooling, high-precision gauging fixture production for medium/large automotive exterior panels.
DM series Incorporating a high dynamic performance machining philosophy, this system achieves the high-speed and high-precision characteristics essential for processing complex surfaces.The machine features an elevated bridge-type double column structure with an isosceles T-shaped profile, delivering exceptional structural rigidity.Constant Inertia Design Philosophy ensures superior static/dynamic characteristics and thermal stability of the machine tool.The ram and crossbeam utilize welded steel construction, achieving high rigidity-to-weight ratio. This ensures elevated natural frequency of the entire machine, effectively suppressing machining-induced vibrations.The Armored protective cover features stainless steel cladding with superior resistance to high-speed, high-temperature chip impacts, while the cover body demonstrates exceptional wear resistance.The cover is constructed from lightweight yet high-strength materials, achieving low-noise operation and smooth motion stability even under high-speed actuation.All motion axis are equipped with linear scale closed-loop detection systems, enabling high-dynamic feed performance.It is widely applied in: contour machining of large-scale molds, multi-angle deep-cavity slot & bore machining for intricate tooling, high-precision gauging fixture production for medium/large automotive exterior panels.
