DM series Incorporating a high dynamic performance machining philosophy, this system achieves the high-speed and high-precision characteristics essential for processing complex surfaces.

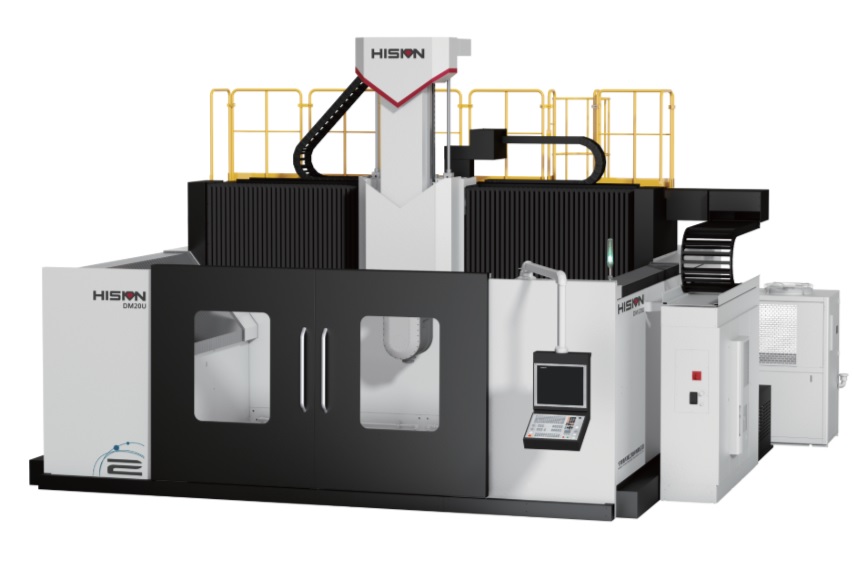

The machine features an elevated bridge-type double column structure with an isosceles T-shaped profile, delivering exceptional structural rigidity.
Constant Inertia Design Philosophy ensures superior static/dynamic characteristics and thermal stability of the machine tool.
The ram and crossbeam utilize welded steel construction, achieving high rigidity-to-weight ratio. This ensures elevated natural frequency of the entire machine, effectively suppressing machining-induced vibrations.
Kessler Milling Head: The axis supports adopt four-point contact ball bearings, angular contact thrust roller bearings, and radial needle roller bearings, delivering exceptional load-bearing capacity and smooth operational stability.
The axis rotary feeds are directly driven by dual torque motors, paired with a high-precision angular measurement system.
The spindle is equipped with a coaxial encoder enabling synchronous rigid tapping.
The spindle bearings utilize an oil-air lubrication system to ensure sustained highspeed machining capability and overload capacity.
The Armored protective cover features stainless steel cladding with superior resistance to high-speed, high-temperature chip impacts, while the cover body demonstrates exceptional wear resistance. The cover is constructed from lightweight yet high-strength materials, achieving low-noise operation and smooth motion stability even under high-speed actuation.
All motion axis are equipped with linear scale closed-loop detection systems, enabling high-dynamic feed performance.
It is widely applied in: contour machining of large-scale molds, multi-angle deep-cavity slot & bore machining for intricate tooling, high-precision gauging fixture production for medium/large automotive exterior panels.
